Description

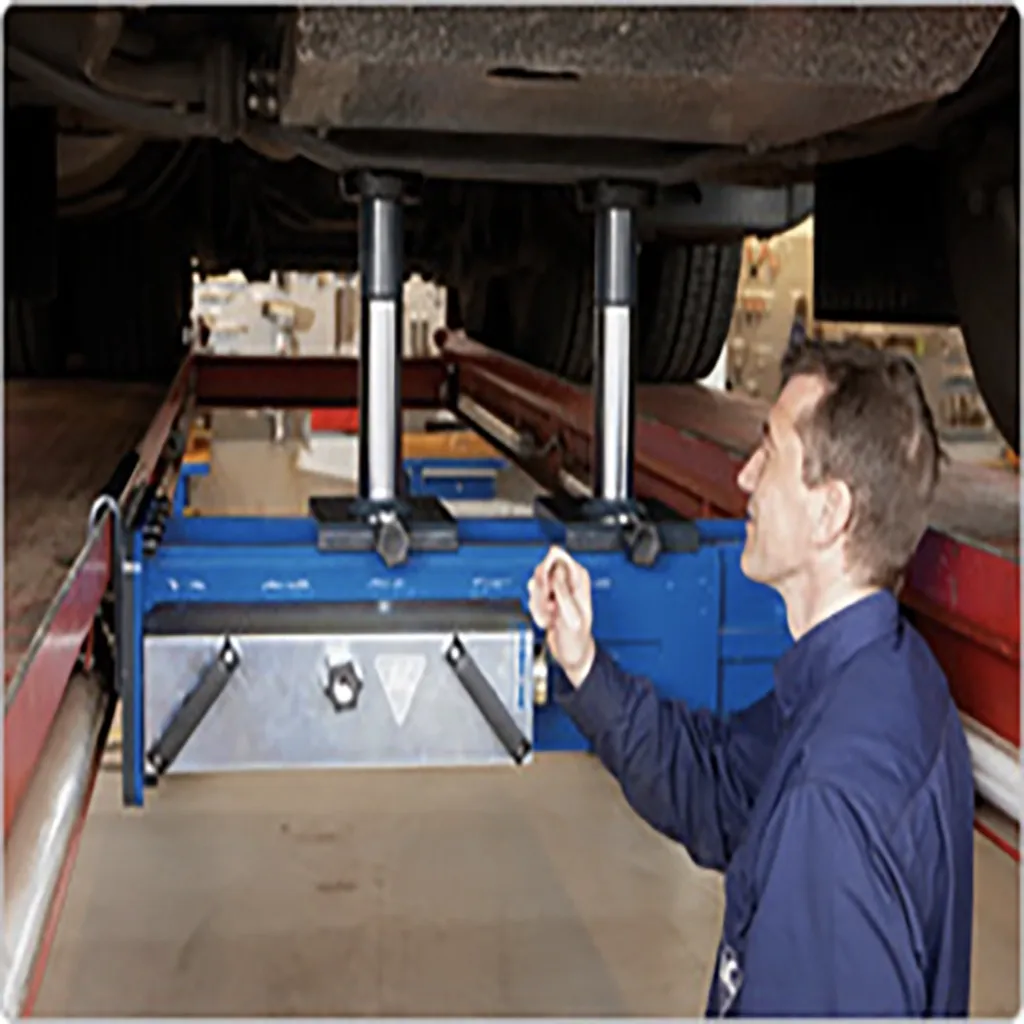

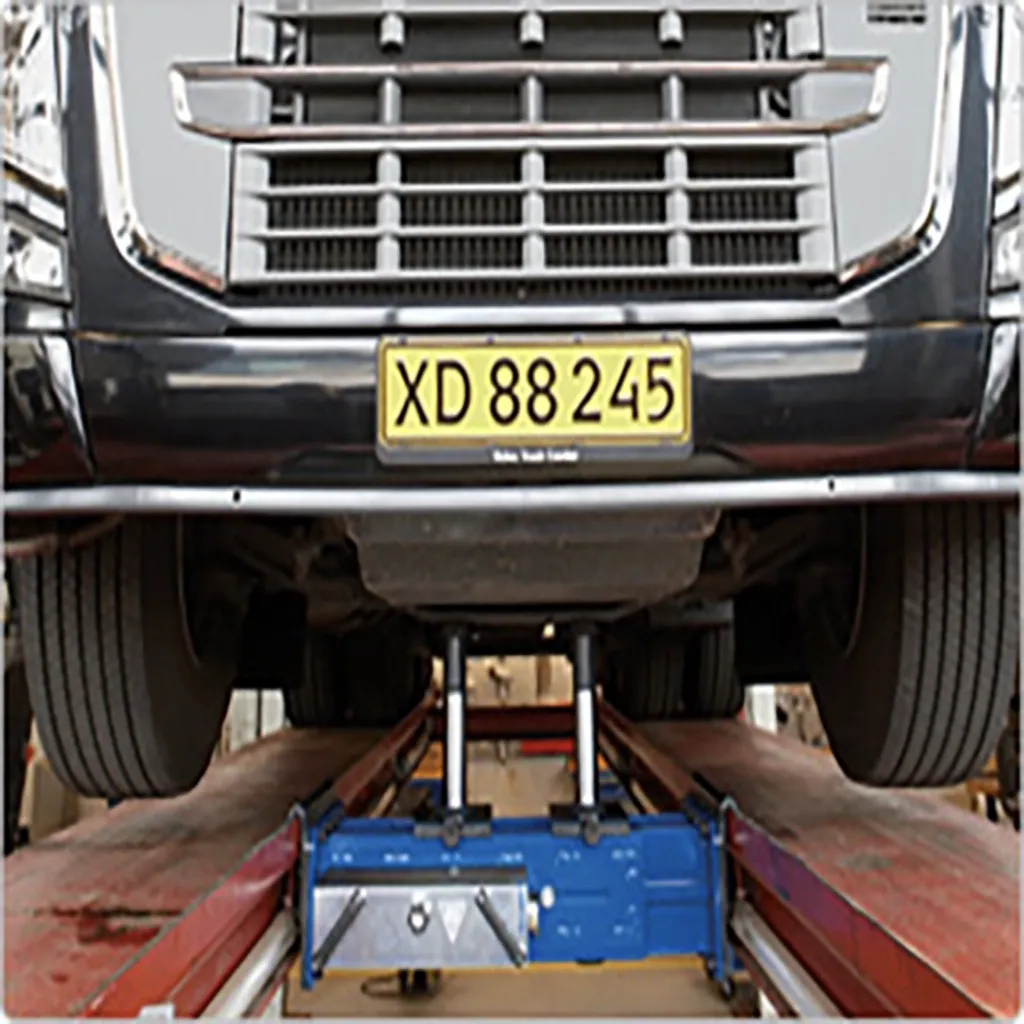

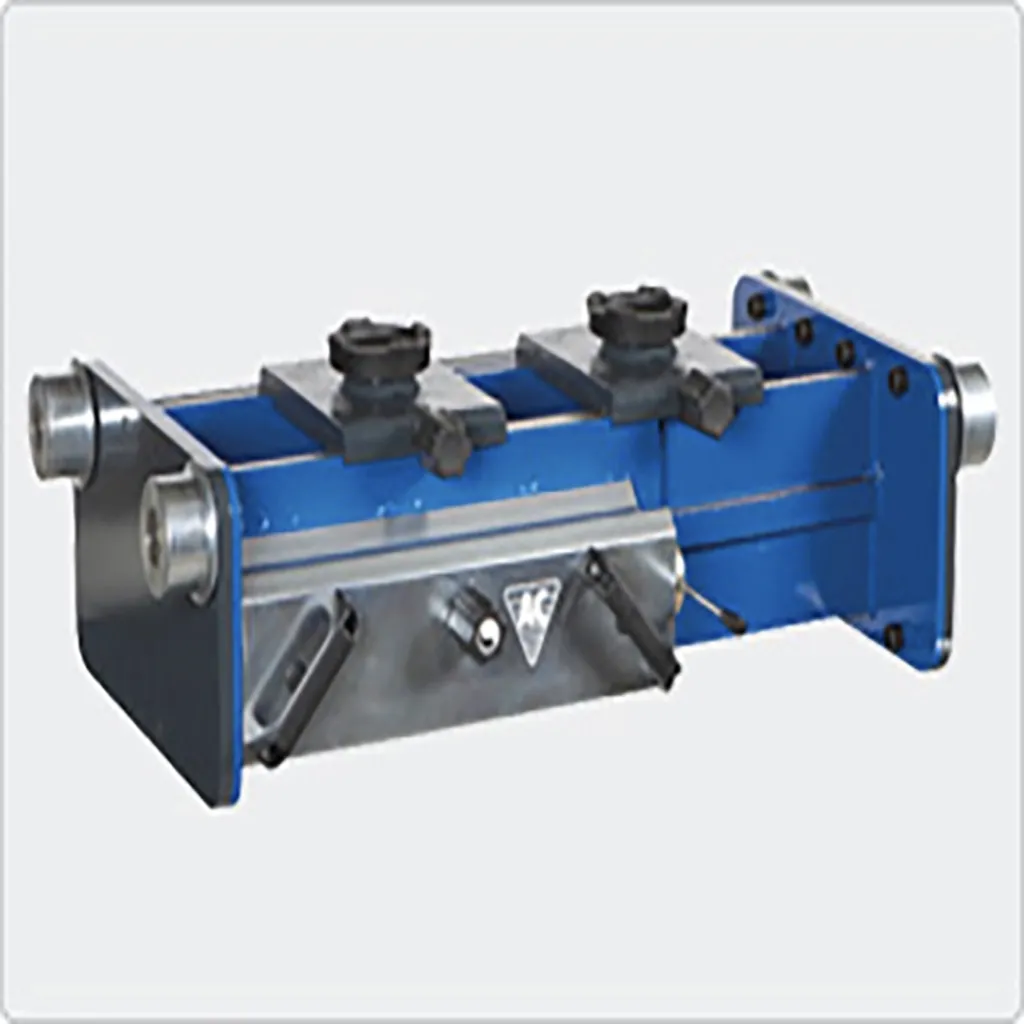

Air hydraulic twin ram jacking beam
2 individually controlled rams offer safe and balanced lifting
Transversely sliding rams
Rapid and precise air hydraulic unit with high speed ram travel
Simple modern design with control panel at ergonomical working height
Can be made to fit all lifts due to its adjustable frame
Frame height is adjusted and set to the customers individual specifications
Dead man’s release and safety overload valve for optimum safety
Supplied with 2 x 3.94 in extensions
When ordering fill out the Lift Specification Form
Technical data
|
FL120-2 |
|
| Capacity | 26500 lbs |
| Stroke | 7.87 inches |
| Min. height | 12.01 inches |
| Max. height | 19.88 inches |
| Width¹ | 23.23-55.51 inches |
| Depth | 26.18 inches |
| Lifting points² | 7.87-45.67 inches |
| Air supply | 8-12 bar |
| Air consumption | 350 l/min |
| Weight | 445 lbs |
¹Framewidth: 23.23-35.04 in / 33.46-45.28 in / 43.70-55.51 in
²Distance between lifting points: 7.87-25.20 in / 7.87-38.98 in / 7.87-45.67 in
* The capacity of the jacking beam cannot exceed 0.66 x the lift capacity
